Transfer Case Fluid Change Cost and When to Do It

A transfer case fluid change costs $100 to $200 at a shop or $30 to $50 DIY. It takes 30 to 60 minutes and is one of the cheapest maintenance items on any 4WD or AWD vehicle. It's also the single most effective way to prevent the $925 to $2,725 cost of a full transfer case replacement.

Most manufacturers recommend changing transfer case fluid every 30,000 to 60,000 miles. If you tow, go off-road, or drive in stop-and-go traffic, cut that interval in half.

What a Fluid Change Costs

Most shops bundle the transfer case fluid change with a differential service or drivetrain package, which drops the marginal cost. Ask your shop if they offer a "4WD service" or "drivetrain fluid package"; it typically covers transfer case, front differential, and rear differential fluid for $250 to $400 total.

The fluid itself is cheap. Where shops charge a premium is on the labor, which is minimal; the drain and fill plugs are accessible from underneath the vehicle with no disassembly required on most models.

When to Change Transfer Case Fluid

Manufacturer recommendations vary, but they cluster into two tiers:

Normal driving (30,000-60,000 miles):

• Ford (F-150, Explorer, Escape): 60,000 miles
• GM (Silverado, Tahoe, Sierra): 45,000-60,000 miles
• Ram (1500): 60,000 miles
• Toyota (4Runner, Tacoma): 30,000 miles
• Jeep (Wrangler, Grand Cherokee): 30,000-60,000 miles depending on transfer case model

Severe conditions (15,000-30,000 miles): Severe service applies if you regularly tow, go off-road, drive in dusty conditions, make frequent short trips (under 10 miles), or operate in extreme temperatures. Most truck and SUV owners qualify for severe service whether they realize it or not.

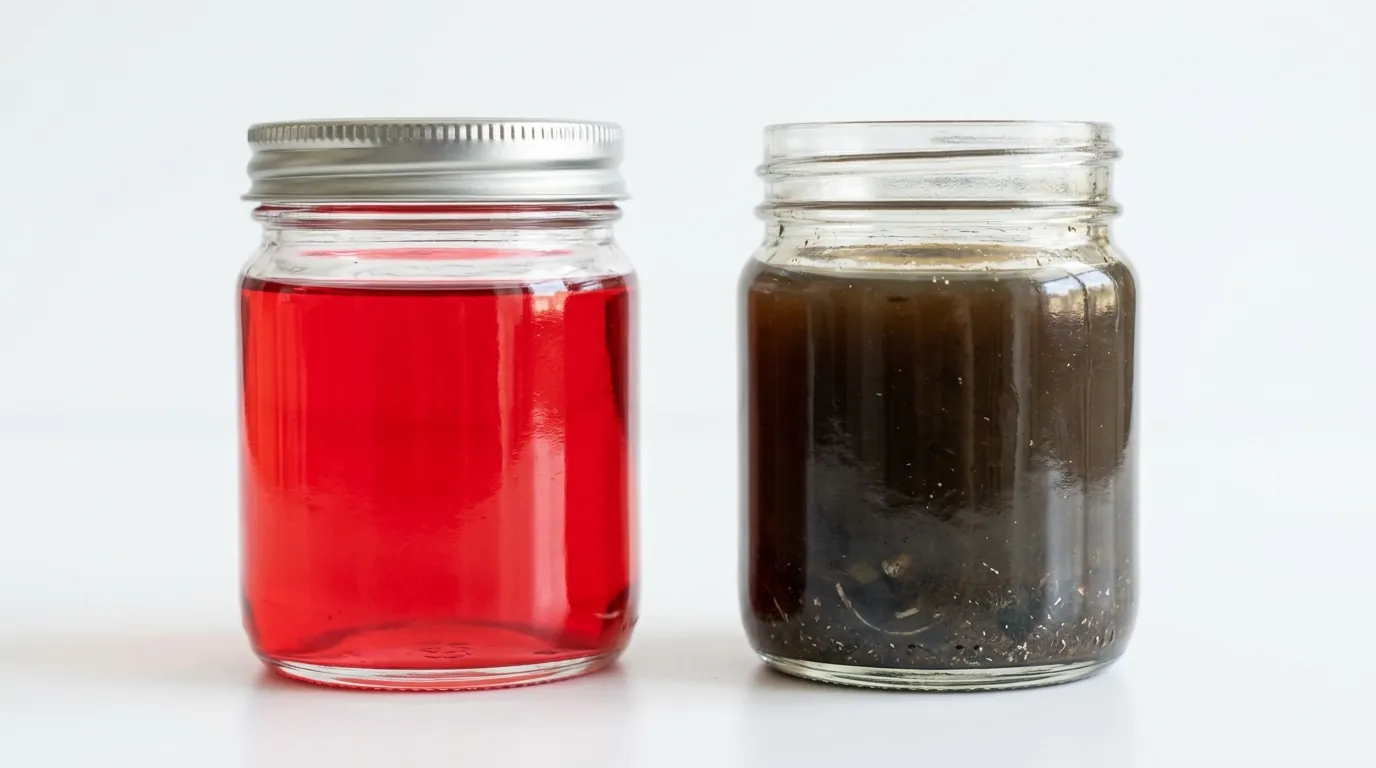

How to tell if you're overdue: check the fluid color. Fresh transfer case fluid is red (ATF-based) or amber (gear oil). If it's dark brown, smells burnt, or has metallic particles, it's past due.

What Happens When You Skip It

Transfer case fluid serves three jobs: lubricating the chain and gears, cooling internal components, and protecting seals. When it degrades, failure progresses through predictable stages:

Stage 1: Noise (30,000-50,000 miles overdue). A faint whine or hum appears when the transfer case is engaged. The fluid has lost viscosity and the chain is running with insufficient lubrication. A fluid change at this point usually resolves the noise.

Stage 2: Rough shifting (50,000-80,000 miles overdue). The shift mechanism starts to feel notchy or hesitant. Degraded fluid can't properly lubricate the shift fork pads and synchronizer rings. Fluid change may help, but some internal wear has occurred.

Stage 3: Grinding and failure (80,000+ miles overdue). Metal-on-metal contact has worn the chain, scored the bearings, and damaged the gears. At this point, the transfer case needs replacement, a $325 median used unit plus $600-$1,000 labor per our transfer case cost guide. If you're sourcing a replacement, our junkyard transfer case pricing guide covers what self-pull and counter-service yards charge.

The math is simple: $100 to $200 every 30,000-60,000 miles prevents a $925 to $2,725 replacement. No other drivetrain maintenance item has a better cost-prevention ratio.

DIY Fluid Change Guide

Transfer case fluid changes are one of the most accessible DIY drivetrain services. Here's the process:

What you need:

• Correct fluid type and quantity (check your owner's manual, typically 2-3 quarts)
• Socket set (typically 10mm to 18mm for drain and fill plugs)
• Fluid transfer pump or squeeze bottle
• Drain pan
• New drain plug gasket (recommended but not always required)
• Jack and jack stands or ramps

Step-by-step:

1. Warm up the vehicle. Drive it for 10-15 minutes so the fluid reaches operating temperature and drains more completely.
2. Locate the drain and fill plugs. The drain plug is on the bottom of the transfer case. The fill plug is on the side, roughly at the fluid level.
3. Remove the fill plug first. If the fill plug is stuck and you can't remove it, you can't refill; don't drain the fluid until you know you can add new fluid.
4. Remove the drain plug. Let the fluid drain completely into the pan. This takes 5-10 minutes.
5. Inspect the fluid. Fresh fluid is red or amber. Dark brown with metallic particles means internal wear is occurring; the fluid change is still worth doing, but monitor for noise after.
6. Replace the drain plug with a new gasket if applicable. Torque to manufacturer spec (typically 15-25 ft-lbs).
7. Fill through the fill plug hole using a pump or squeeze bottle. Fill until fluid begins to seep from the fill hole; that's the correct level.
8. Replace the fill plug. Torque to spec.
9. Check for leaks after running the vehicle for a few minutes.

Total time: 30 to 60 minutes. The hardest part is usually getting the fill plug out if it's corroded; soak it with penetrating oil the day before if you suspect it's stuck.

Which Fluid Your Vehicle Needs

Using the wrong fluid can damage internal components. Three main types exist, classified under API (American Petroleum Institute) standards:

The golden rule: check your owner's manual or the sticker on the transfer case itself. Ford's owner manuals and GM's maintenance guides list the exact fluid spec for each transfer case model. Many modern transfer cases require manufacturer-specific fluid that isn't interchangeable with generic ATF or gear oil. Using the wrong type can cause shift problems, premature wear, and voided warranty on reman units.

Fluid cost by type:

• ATF (Dexron VI): $8-$12/quart
• Gear oil (75W-90): $10-$15/quart
• Manufacturer-specific (e.g., Valvoline Full Synthetic ATF): $15-$25/quart

Even at the most expensive fluid, the DIY cost maxes out around $50-$75 for a complete change, a fraction of the shop price and a tiny fraction of the replacement cost. For a full comparison of replacement options if maintenance does fail, see our used vs remanufactured transfer case comparison.

For current pricing on what a transfer case replacement costs if fluid maintenance fails, check our transfer case price lookup with data across 35 vehicle models.
