Headlight Assembly Replacement Cost: $237-$2,000 (2026)

Replacing a headlight assembly costs $237 to $2,000 total with a used OEM part, or $110 to $500 if you go aftermarket. The used OEM assembly itself runs $650 median across our index, and labor adds only $50 to $200 because headlights are among the most accessible parts on a modern vehicle.

That labor number is the headline. According to AAA repair cost data, on most repairs, shop time is where the bill balloons. On headlights, it barely registers, the part accounts for 75% to 90% of what you pay. Which means the entire cost decision comes down to one question: where do you buy the assembly?

What Headlight Assembly Replacement Costs

Here's the full picture across the three sourcing options. Labor is identical in all three columns, the shop does the same work regardless of where the assembly came from.

Aftermarket looks like the obvious winner on price alone, and on a 12-year-old commuter car it often is. The tradeoff is fit, seal quality, and beam pattern, an aftermarket housing that seats slightly wrong will collect moisture within a year, and a poorly designed reflector scatters light where oncoming drivers are rather than down the road. That comparison deserves its own treatment, and we cover it in the used OEM vs aftermarket headlight analysis.

*Part pricing source: PartPriceGuide.com analysis of 76,427 salvage yard listings, August 2026.*

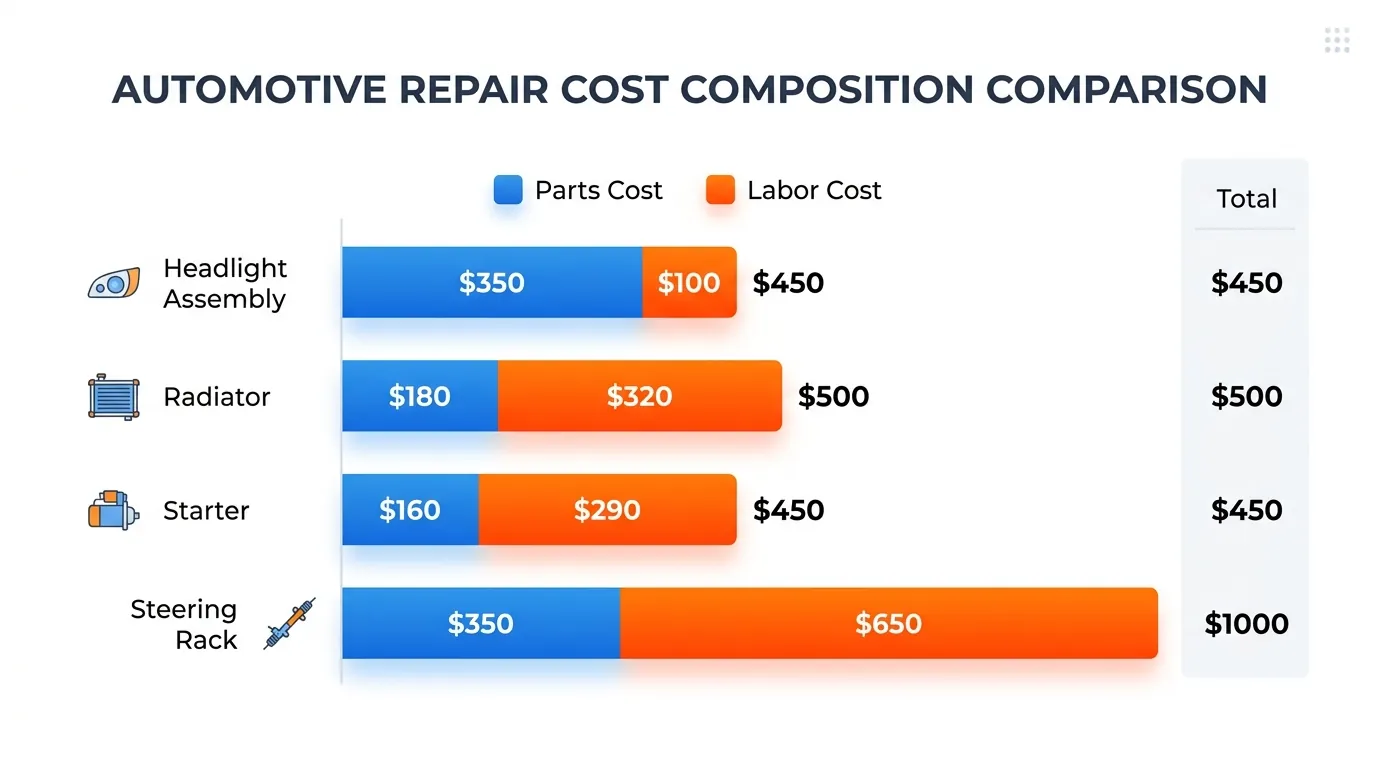

Part vs Labor — Where Your Money Goes

Most auto repair pricing follows a familiar shape: a modest part buried behind hours of disassembly. A starter costs $95 used but sits under the exhaust manifold, so labor runs $150 to $400 and ends up being most of the bill. A steering rack is worse.

Headlights invert that entirely.

The reason is purely structural. A headlight assembly bolts to the front of the radiator support, facing up and out. Open the hood and it's right there. Three or four 10mm bolts, one wiring connector, and on some vehicles a plastic air intake duct or a few grille clips that pop off by hand. There's nothing to drain, nothing to bleed, nothing to torque to spec, and no scan tool required on the vast majority of vehicles. Book time is typically 0.5 to 1.0 hours per RepairPal labor estimates.

That has a direct consequence for how you should shop. When labor dominates a repair, overpaying $50 on the part barely moves the total, so buying convenience makes sense. When the part is 85% of the bill, every dollar you save on sourcing lands almost entirely in your pocket. Headlights are the strongest argument in the entire used-parts market for shopping hard on the component itself.

Cost by Vehicle Model

Model medians for used OEM assemblies span $187 to $1,800, nearly a 10x spread. Lighting technology and brand tier explain almost all of it.

Notice how compressed the labor column stays. From a Corolla to an X5, labor moves by about $110 while the part moves by more than $1,600. Even on the most expensive vehicle on this list, labor is roughly 7% of the total.

The BMW X5 line is where the used-parts case becomes overwhelming. A new OEM X5 headlight assembly runs $2,500 to $4,000, adaptive LED units with integrated control modules, leveling motors, and cornering functions. A used OEM assembly at $1,800 isn't cheap in absolute terms, but it saves $700 to $2,200 on a single corner of the car, and it's the identical part with the identical beam pattern and the identical connector.

For your exact year, make, and model, run a headlight assembly price lookup.

Halogen vs LED vs Adaptive — How Technology Affects Cost

The single biggest driver of headlight assembly price is what's inside the housing.

Halogen reflector ($187–$450 used). A bulb, a chrome reflector bowl, and a clear lens. No electronics, no ballast, no module. Replacement bulbs cost $10 to $25 and swap in a minute. These are the cheapest assemblies on the market and the reason a Corolla sits at $187 while a Tahoe sits at $740.

HID / xenon projector ($350–$900 used). Adds a ballast or igniter that steps voltage up to fire the arc tube, plus a projector lens and usually an automatic leveling motor. More parts means more failure points and a higher used price. Check the ballast is included and undamaged before you buy; sourcing one separately erases the savings.

LED ($500–$1,600 used). The LEDs and their driver electronics are sealed into the housing and aren't serviceable. When an individual LED or the driver fails, the entire assembly is the replacement unit. This is why LED-equipped vehicles have such punishing new-OEM pricing, and why the used market matters so much for them.

Adaptive / matrix LED ($900–$1,800+ used). Steerable or individually switchable LED segments that bend light into corners and cut glare around oncoming traffic. These contain a control module, stepper motors, and vehicle-specific calibration data. On some German and Volvo models, a replacement assembly needs to be coded to the vehicle with a factory-level scan tool; budget an extra $80 to $150 at a shop or dealer if yours is one of them.

One planning note across all four types: if a used assembly comes from a donor with the same trim and lighting package, it's plug-and-play. If it comes from a different trim, the connector pinout or module firmware may not match. Verifying that before purchase is the core skill in this category, and our guide to buying a used headlight assembly walks through the interchange checks.

Can You Replace a Headlight Assembly Yourself?

Yes, this is genuinely one of the easiest DIY repairs on a modern car. Most vehicles take 15 to 30 minutes with hand tools you likely already own.

What you need: a 10mm socket and ratchet, a Phillips screwdriver, and a plastic trim tool or a flathead wrapped in tape for pushpin clips.

The general procedure:

1. Open the hood and locate the assembly's mounting bolts along the top and inner edge, usually three or four.
2. Remove any plastic covers, air intake ducts, or radiator support panels blocking access. These are typically held by pushpin clips.
3. Unbolt the assembly and pull it straight forward. It may have a locating tab at the outer fender that requires a slight outward tilt first.
4. Disconnect the wiring harness by pressing the connector's release tab. Don't pull on the wires.
5. Transfer the bulbs and any ballast or leveling motor to the new assembly if it didn't come with them.
6. Reconnect, seat the assembly, start the bolts by hand, then tighten. Don't overtighten; the mounting tabs are plastic on most designs.
7. Test high beam, low beam, turn signal, and DRL before closing the hood.

Where DIY gets harder: some vehicles require bumper cover removal for access, which turns a 20-minute job into 60 to 90 minutes. Ford F-150, several Nissan models, and most Mercedes-Benz vehicles are in this category. Check a model-specific walkthrough before you start so you know which category you're in.

Don't skip the aim check. After installing a new assembly, park 25 feet from a flat wall on level ground and confirm the cutoff line sits at or just below headlight center height and matches side to side. Most assemblies have a Phillips or hex adjuster for vertical aim. A misaimed headlight either blinds oncoming drivers or lights up the pavement 30 feet in front of you, both violations of NHTSA headlight aiming standards and worse than the hazed lens you replaced.

At $650 median for the part and $50 to $200 saved on labor, DIY on a headlight is one of the better effort-to-savings trades in home car repair. For the full pricing picture including grading standards, warranty terms, and where the best inventory sits, see our complete used headlight assembly cost guide.
